EON X-Ray Long-Life Asset Tracker

Indoor and Outdoor GPS Location Updates with Years of Battery Life

Price Drop
You Save $100.04
$99.95
$199.99
SKU: EonGPS

Order in the next and get it by

Adding… The item has been added

About the Product

  • Tracker uses both GPS and Wi-Fi signals to provide accurate location updates
  • 4 Lithium AA batteries included - easily replaceable, good for half a decade
  • Motion updates sent every fifteen minutes; this can be reduced for even longer battery life
  • 90day-warranty
  • bbb-bhs
  • shopperapproved-barge
  • rectangle-badge
  • Free 2-Day Shipping
  • Easy Returns
  • This item ships Today
Overview

The EON X-Ray gives you eyes on your remote assets for years without any need for charging. This ruggedized GPS tracker leverages cellular connectivity, GPS data, and Wi-Fi positioning to deliver its location and motion state. The device is waterproof and dustproof, works indoors and out, and carries a robust power management system that delivers exceptional battery life. The EON supports multiple frequency bands, so it can be configured to work globally.


By default, the EON will report twice a day while stationary for years. If it moves, it will track every 15 minutes as long as it is in motion, so you can track down your property quickly. This low-impact tracking configuration allows the EON to report for up to five years with factory settings using four easily replaceable AA lithium batteries. It's perfect for tracking a shipment on the go or keeping a long-term asset secure in a factory. Have a special need? Custom tracking can be set at 60 seconds, 3 minutes, or 5 minutes by contacting your BrickHouse sales representative, though this will reduce battery life.


The EON is rated IP67, which means it is resistant to both dust and water. The device operates over the business-class BrickHouse Security Locate GPS platform, where you can monitor the location of all of your tracking devices at once.

Specifications

Brand:

SKU: EonGPS

Special Feature: GPS and Wi-Fi connections keep this accurate locator tracking both indoors and out.

Dimensions: 4.25 x 4.25 x 1.00"

Power: 5+ Years Standby

Transmission: 4G Cellular Coverage Across North America

Storage: Cloud Web Server

Service: $24.99/Month for 15 min Tracking Interval

The EON X-Ray ships configured to track every 15 minutes. We will happily modify your device to track at a longer interval at any time after purchase. Please email support@brickhousesecurity.com with your request.

Cellular

 Operating Bands:
 LTE: B1, B2, B3, B4, B12, B13, B18, B20, B39
 2G: GSM850, GSM900, DSC1800, PCS1900

Location Services

 Cell Tower Triangulation, 1,000-50,000m
 Satelitte Triangulation, 5m-100m
 WiFi Access Point Triangulation, 10-250m

Sensors
 GPS
 W-iFi

Environmental

 Operating Temperature: -20 to 55º C

Carrier/Regulatory Approvals
 AT&T, FCC, PTCRB, RoHS Compliant

Service Plan
EON ships with 15-min. tracking. Please call to change plans.

Recommended Subscription: $24.99/mo billed quarterly

Our Guarantee: When you purchase a product from BrickHouse Security, you can expect exceptional customer care from our team. All BrickHouse products come with free, unlimited lifetime technical support. Call, Chat, Text, E-mail, or browse the knowledge base.

Easy Returns: BrickHouse Security stands behind its products with a 30-day money-back guarantee. Return requests must be made within 30 days of receiving your order. Requests made after 30 days may be denied.

Reviews
Overall Rating
/ 5
25
customers have
rated this product.
  • DR TX
    Apr 27th 2024
    5
    Works Great

    Great product and fast professional service.

  • JC
    Oct 29th 2023
    5
    Saved my driver's license

    Works perfectly!!! I was stopped on the interstate by the local police dept for speeding over the posted speed limit. I argued that I wasn't, printed out data showing my speed, position, lat/long… read more

  • Noe L.
    Oct 21st 2023
    5
    Peace of Mind

    We recently bought a very expensive boom lift for our construction company and were afraid that anyone could take off with it after hours when left at job sites. With this GPS, we can now sleep bette… read more

  • R. R.
    May 18th 2023
    5
    Very nicely made

    Beautiful piece of equipment. No more magnets, glued to heat sinks. No more electrical tape, well thought out.

  • Denise C
    Oct 18th 2022
    5
    GPS for RV

    Purchased this GPS for our RV. The text message alerts are extremely helpful. BrickHouse support staff were very courteous when we first signed up.

  • Brian
    Nov 9th 2021
    4
    Vehicle tracking at its best

    My older truck was stolen from work. So I was looking for a tracker that I did not have to charge the battery every week. And by setting the tracking option to notify me when the vehicle goes over 30m… read more

  • VaLour
    Jan 23rd 2020
    5
    Product Review

    Product works great

  • Dan Gale
    Jan 23rd 2020
    5
    Worth getting

    This item worked great. It did exactly as it was suppose to do. I am impressed with it's battery life. It is a great purchase to get from BrickHouse. Only I would recommend that you do verify you… read more

  • Fryz
    Dec 9th 2018
    5
    I Will Be Purchasing this item & Spread Along with Other Drivers

    I Drive Trucks & This Seems Like The Best device 2 Purchase

Write a review about this product
FAQ's

Frequently Asked Questions about the EON GPS Tracker

What are the key features of the tracker?

Some key features include long battery life, rugged construction for durability in harsh environments, and remote monitoring capabilities via a user-friendly interface.

What sets it apart from other tracking devices on the market?

The tracker stands out for using both GPS and Wi-Fi signals to provide accurate location updates. GPS uses satellites to find your location, but obstacles like buildings can make it less accurate. Wi-Fi positioning steps in when GPS isn't reliable, using nearby Wi-Fi signals and a database of access points to estimate your location until GPS is back on track.

How does it attach to the vehicle I’m tracking?

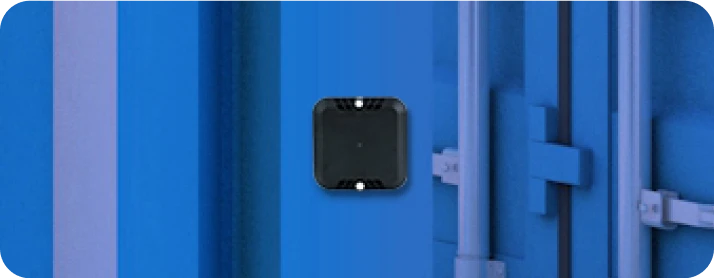

You may need the magnetic mounting kit when placing the unit beneath an asset. Ensure the sticker faces downward, towards the ground, and is positioned close to the edge of the asset. For tracking large containers, mount the device with the sticker facing upward, towards the sky, to receive a GPS signal.

How long will the battery last?

The Eon's battery lasts an astonishing 5 YEARS when you set your device to send a location ping every 12 hours. Learn more about GPS tracking intervals.

Can I adjust the tracking intervals?

Yes! Custom tracking can be set at 60 seconds, 3 minutes, or 5 minutes by contacting your BrickHouse representative. Please note that this customization may result in reduced battery life.

Can it withstand harsh environmental conditions?

Yes, the tracker is built to withstand extreme temperatures, moisture, and other challenging conditions, making it suitable for indoor, outdoor, and industrial environments.

What is the range of the tracker?

Our GPS trackers connect to 4G networks, allowing you to track it across the US, North America, and countries across the globe.

Is there a fee for activating this device?

There is no additional fee required to activate this device.

How can I monitor my assets using the tracker?

You can monitor your assets through our user-friendly online platform or mobile app. You can download our mobile tracking app to review your tracker’s movement and locations. The app is compatible with Android and iOS devices.

How much is the subscription fee?

The Basic Plan, with 15-minute location updates, costs $24.99 per month, while the Plus Plan, offering 5-minute updates, is priced at $34.99 per month, and the Premium Plan, featuring 1-minute updates, is available for $44.99 per month—all billed quarterly. Please see the Service Plan tab for details.

What does the subscription fee cover?

The subscription fee provides your GPS tracker with cellular service that allows it to report its location back to you. Your subscription fee covers the cellular data service and the cloud software required to access the information. Learn more about how a GPS tracker communicates.

Why is cellular service needed for a GPS tracker?

While a GPS tracker uses satellites to identify its location, it must use cellular service to communicate the location back to the user. Cellular service is the most effective option for use in populated areas. If you are trying to track in rural areas, wilderness areas, or in the middle of the sea or desert, we recommend exploring our selection of Satellite GPS trackers.

Do I need to use a SIM card or sign up for service with a cell phone company?

This is not necessary. The BrickHouse Security service plan includes everything you need.

Can I cancel the service anytime? Is there a contract?

Yes, you can cancel the service at any time. There is no contract involved. You can call us at 800-654-7966.

Will I receive text alerts to let me know when the tracker moves?

You can set up text message alerts to notify you as soon as the unit begins moving.

What types of alerts does this tracker send?

This device can be programmed to send alerts when the device begins traveling faster than a predetermined speed or when it crosses a preset boundary or geofence. Learn more about using GPS geofences.

Does this tracker work internationally?

This tracker functions internationally, covering North America, including the U.S., Canada, Mexico, and countries worldwide. Coverage options are available based on the selected plan. For more details, you can visit the Service Plan tab.

Can I export the logged data to Microsoft Excel?

Yes, you can export any generated reports to Microsoft Excel. Refer to the manual for step-by-step instructions, or watch tutorial videos on our help site.

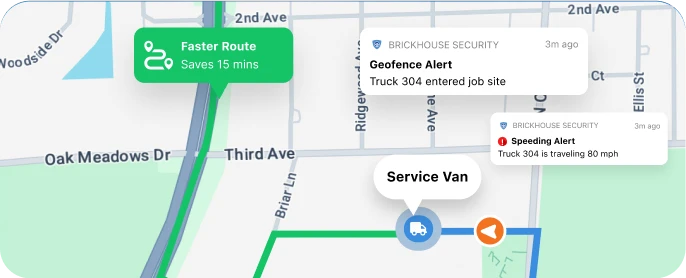

Top Features Of Our Platform

Platform Features image/Laptop with Mobile phone

Geofencing

Enables setting up virtual boundaries and sends alerts if the tracker enters or leaves a designated area.

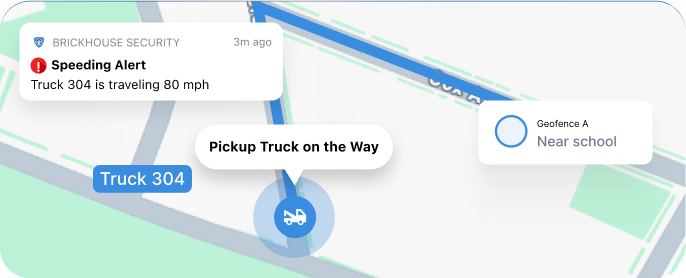

Speed Alerts

Sends notifications if the tracker exceeds a set speed limit

Real-Time Tracking

Allows for monitoring the location of the tracker in real time

Access via Mobile App

Allows users to monitor and control the tracker through a smartphone application

Location History

Stores historical location data, which can be reviewed later

Connectivity

Types of network connection supported (e.g., GPS, Wi-Fi, LTE).
